l Features:

Bag shortage alarm, bag loss alarm;

The bag clip error alarm and automatic processing;

Automatic detection and alarm for broken needle and broken wire;

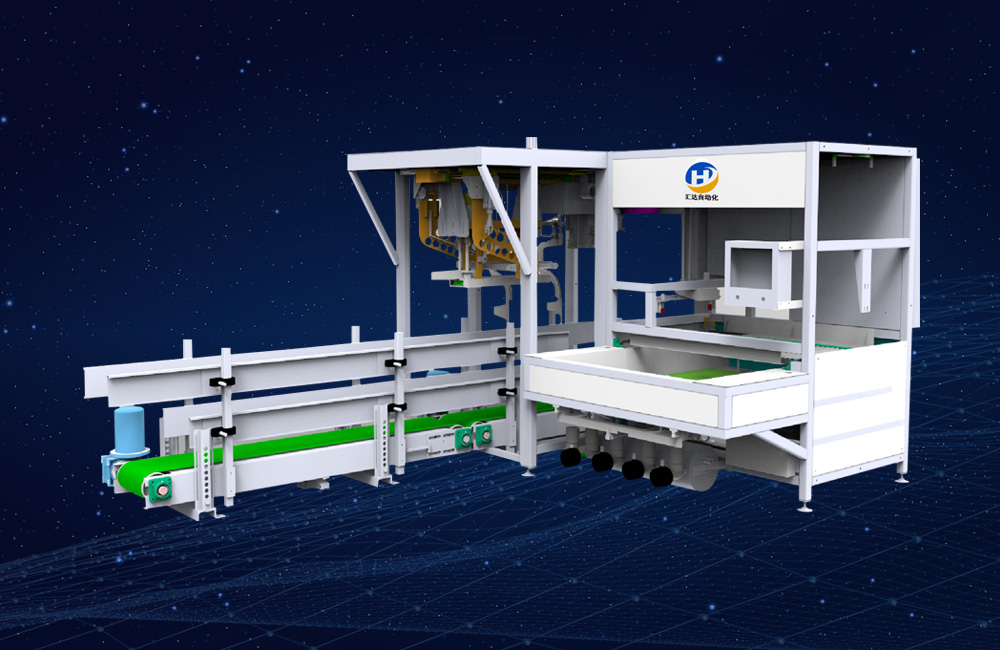

The automatic packaging production line can realize functions such as automatic bag suction, bag delivery, bag loading, bag drop, righting, bag shifting, automatic labeling, automatic bag sewing, voice broadcast of fault points, and automatic rejection of unqualified woven bags. The whole process of packaging is unmanned. ization; reduce labor costs.

The line adopts touch screen control, operation, switching, maintenance is very convenient, safe and reliable.

l Technical indicators:

Packaging bag specifications: 500-650 wide*800-1000 long

Packing speed: ≧500 packs/hour

Bagging success rate: 99.8%

Packing weight: 20-50KG

Labeling success rate: 98.8%

Applicable materials: granular materials, powder materials

Appearance size: 2600mm*1800mm*1900mm

Air consumption: 15m3/h

Air source pressure: 0.5-0.7Mpa

Power: <10KW

Power supply: 380/220V three-phase five-wire

Bag supply success rate: 99%

Bag material: paper, polyethylene (PE), paper with PE lining or PE coating, laminated polypropylene

Unusable packaging bags: the inner bag mouth is separated from the outer bag; without the inner bag, the mouth of the bag is eager
